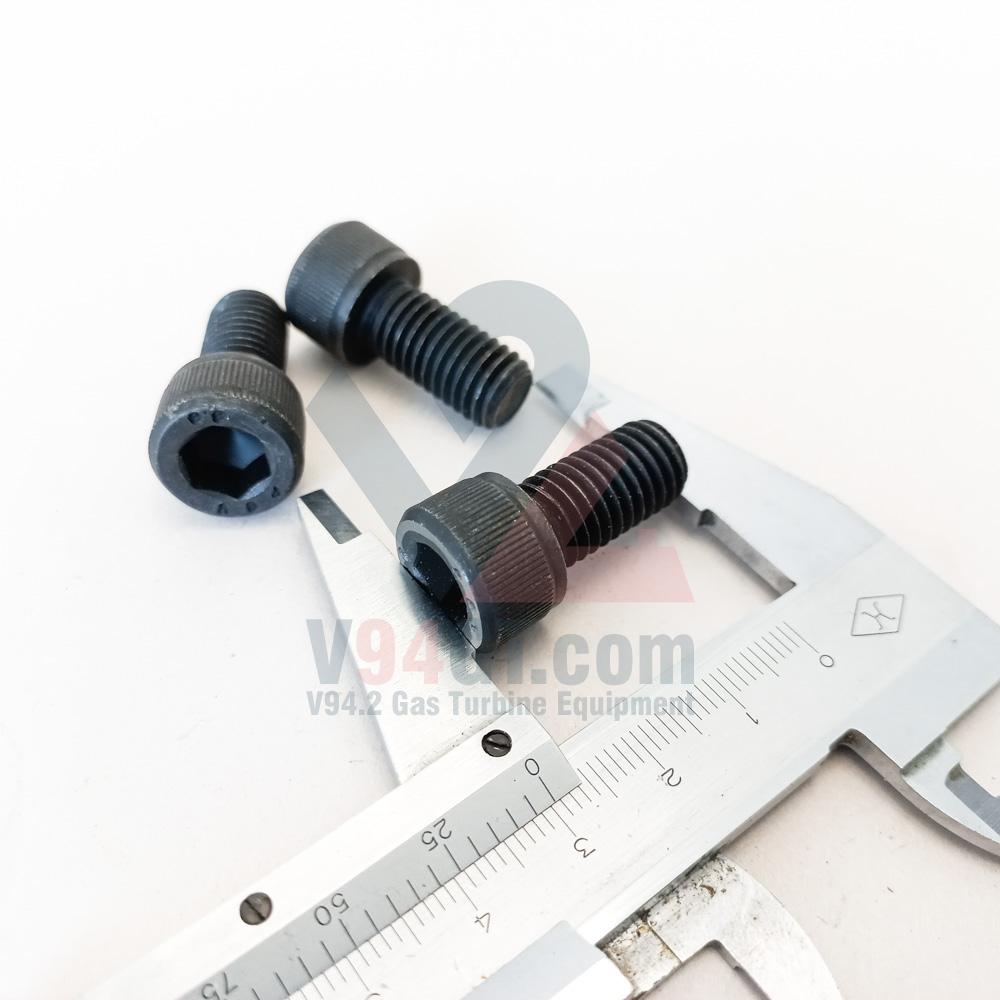

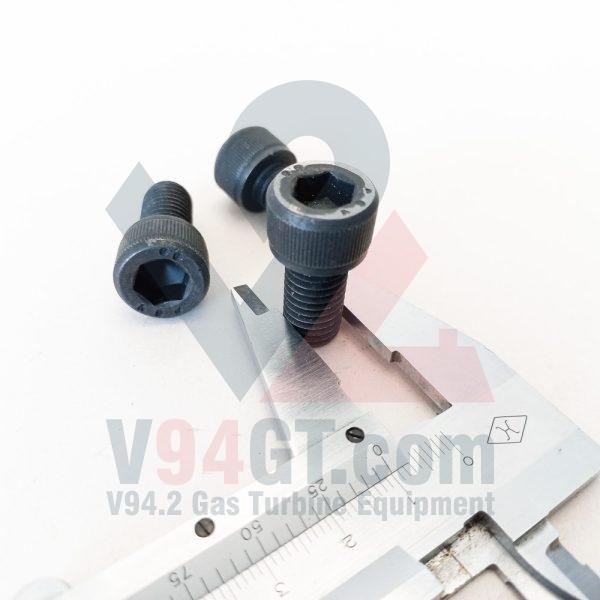

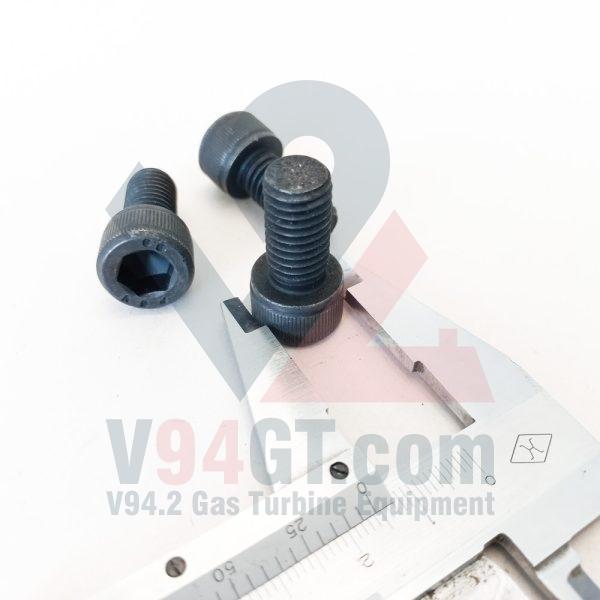

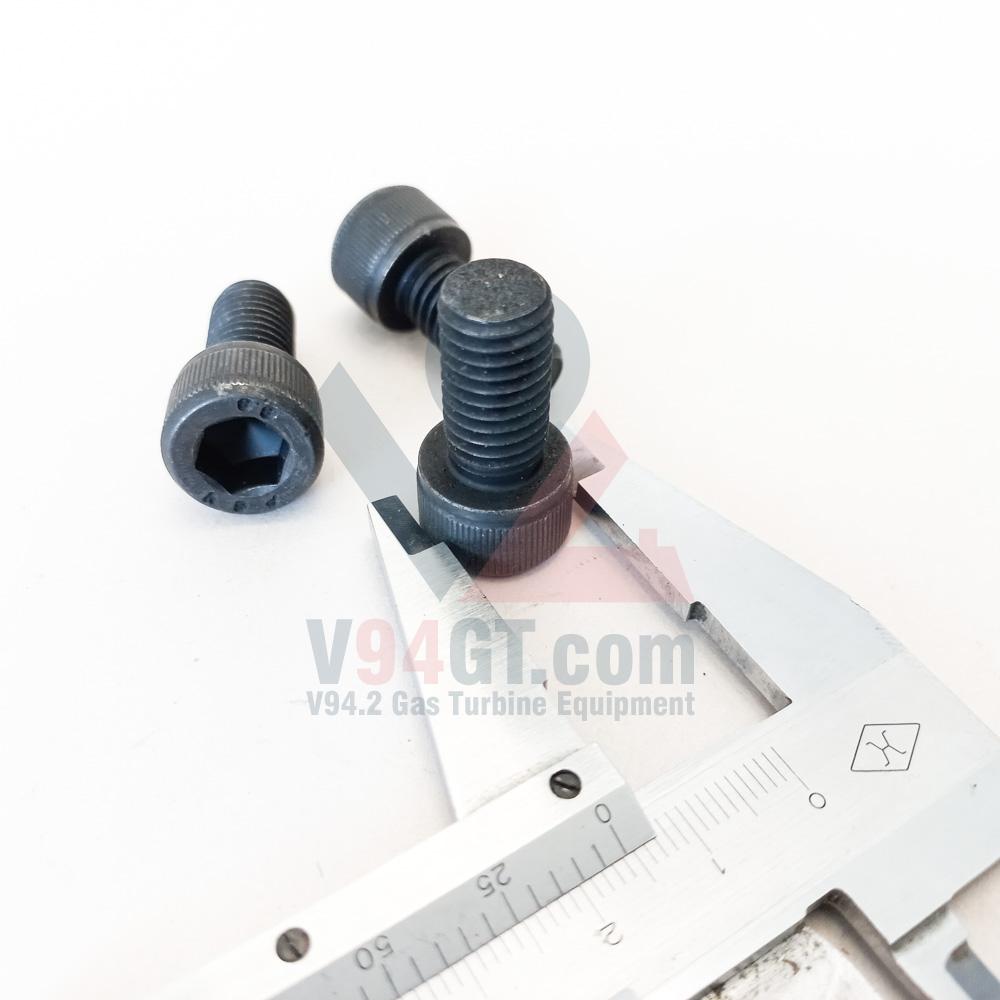

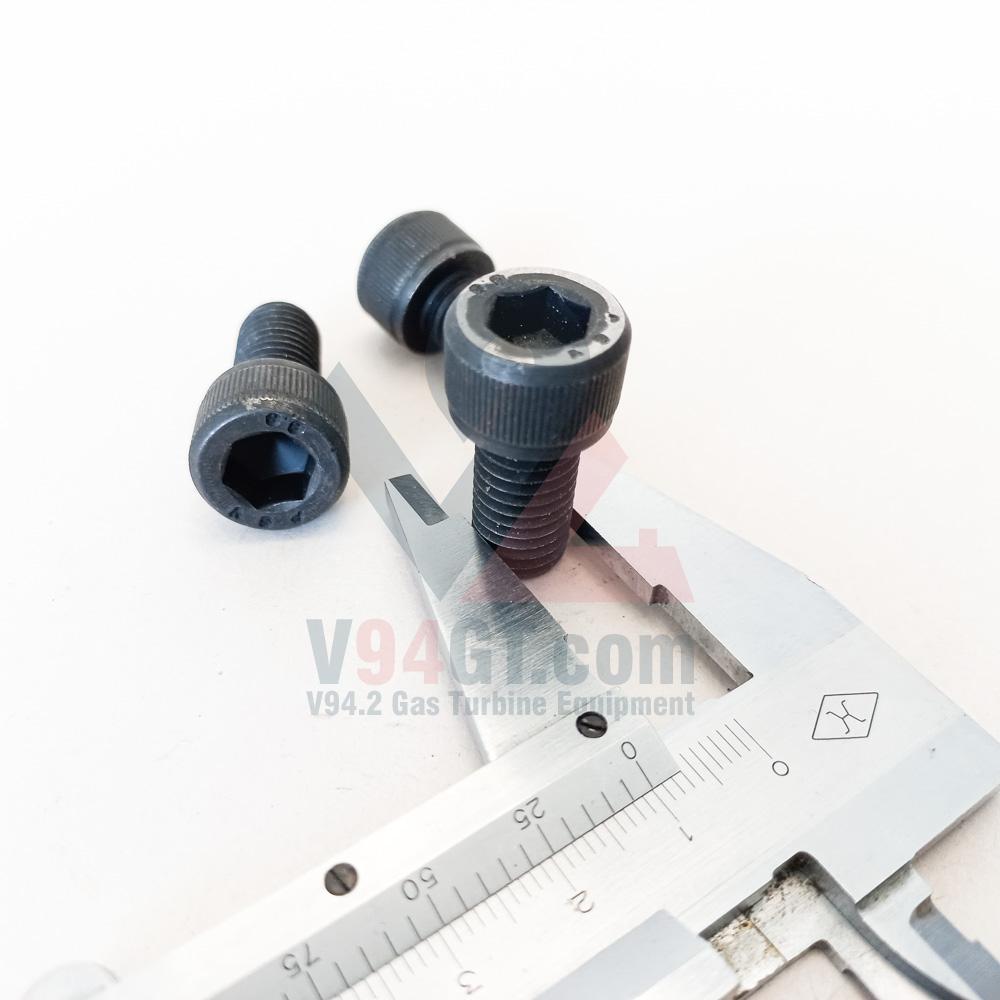

Socket Head Screw M10x20: A Critical Component of V94.2 Gas Turbine’s Adjusting Ring System
Introduction:
Socket Head Screw M10x20 is an essential part of V94.2 gas turbine adjusting ring system. It has specific specifications, such as material grade, heat treatment, and yield/tensile strength. Understanding these details is crucial to ensure the proper functioning of the gas turbine.
Material and Heat Treatment SOCKET HEAD SCREW M10X20:
This equipment is made from 1.1191 standard material grade, which is a high carbon, high chromium steel alloy. It undergoes hard temper heat treatment to improve its strength and durability, making it suitable for the high-stress environment of the gas turbine.
Strength and Hardness:
The yield strength of Screw M10x20 is 874 N/mm2, and its tensile strength is 900 N/mm2. These values indicate its ability to withstand high stress and pressure. Additionally, its hardness of 28 ensures that it can withstand wear and tear without breaking or deforming.
Function SOCKET HEAD SCREW M10X20:
This particular screw is used in the adjusting ring system of V94.2 gas turbine. This system ensures that the gas turbine operates efficiently and produces the desired power output. This component plays a crucial role in holding the adjusting ring in place and maintaining the proper alignment of the turbine blades.
Importance in Gas Turbine Maintenance:
Regular maintenance and inspection of Screw M10x20 are crucial to ensure the proper functioning of V94.2 gas turbine. Any wear or damage to this component can lead to misalignment of the turbine blades, causing reduced power output or even complete failure of the gas turbine.
Conclusion:
This equipment is a vital component of V94.2 gas turbine’s adjusting ring system, with specific material and strength specifications. Understanding its function and importance in the gas turbine’s operation is essential to ensure its reliable performance. Regular maintenance and inspection of Screw M10x20 are necessary to prevent any downtime or damage to the gas turbine.
