Description

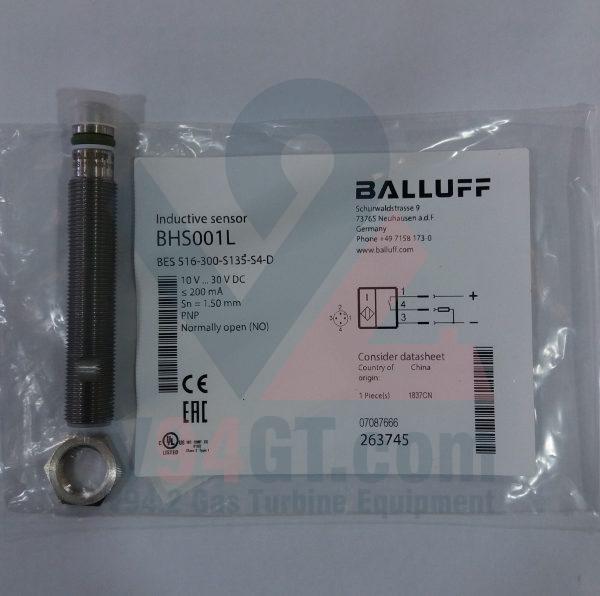

Proximitor BALLUFF BHS001L

BES 516-300-S135-S4-D BHS001L

Pressure Proximity Switch Sensor

Inductive sensor

General data

Approval/Conformity : CE – cULus – EAC

Basic standard : IEC 60947-5-2

Thrust ring, part number : 705918

Material

Gasket, material FPM 70

Housing material : Stainless steel (1.4104)

Material sensing surface : EP

Support ring material : PTFE

Mechanical data

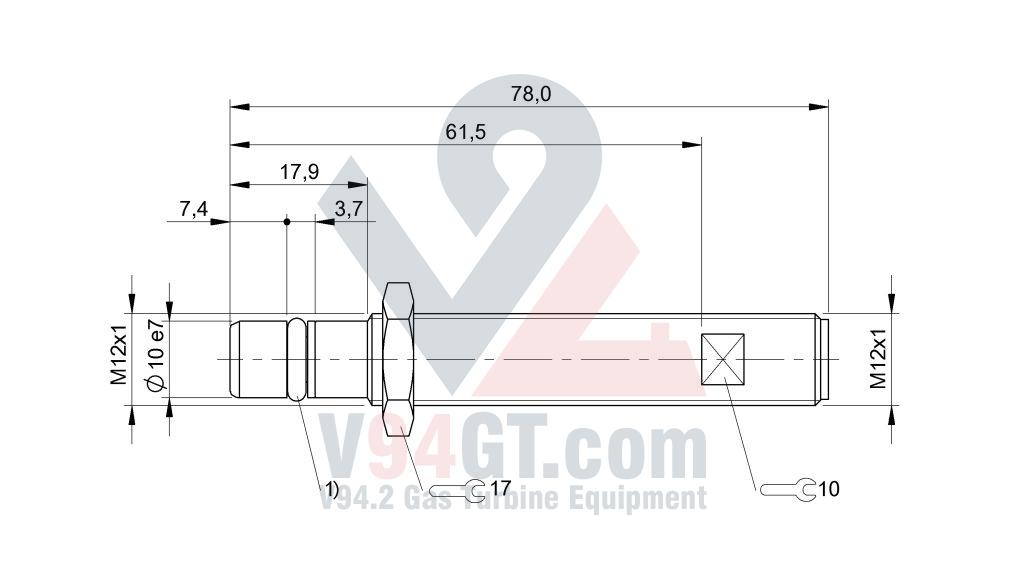

Dimension : Ø 12 x 78 mm

Fastening detail : M12x1

Installation : for flush mounting

Pressure rating max. : 500 bar

Pressure rating, note : oil pressure rated

Sealing ring, part number : 636594

Sealing ring, size : 5.85 × 2.4 mm
