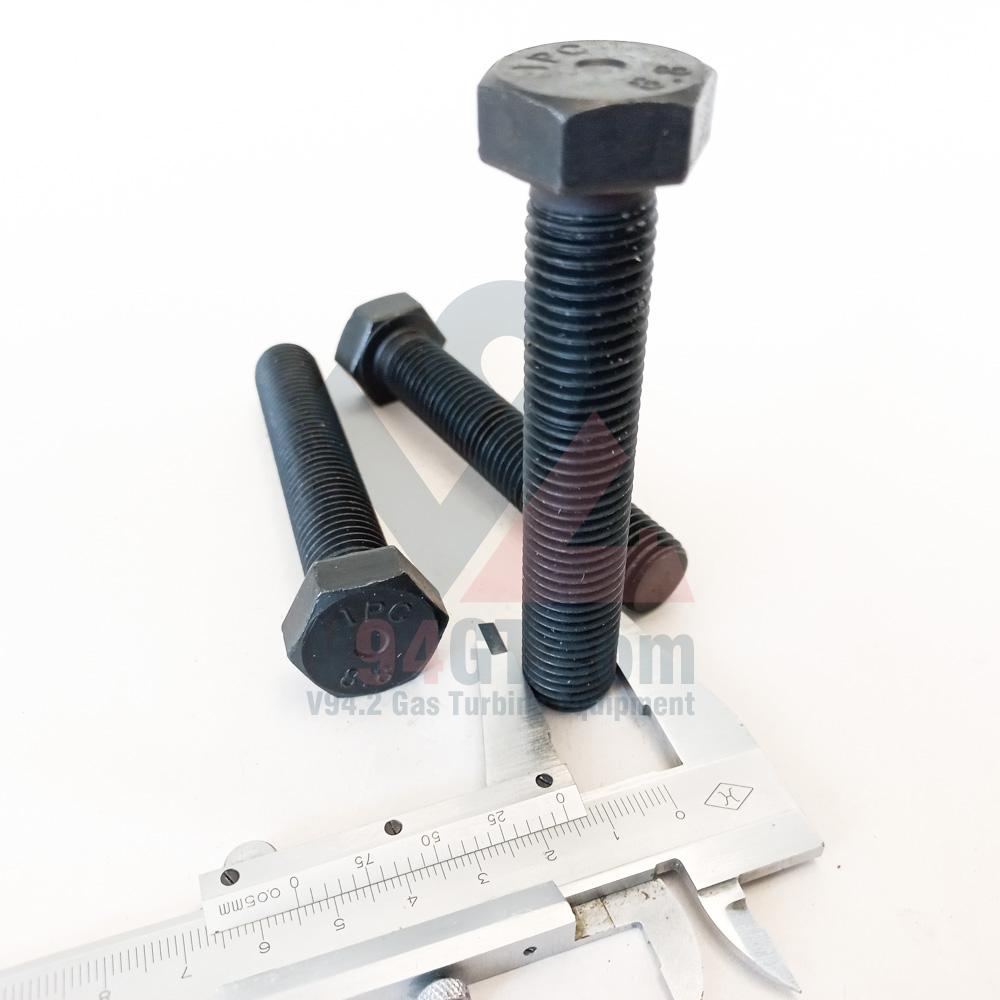

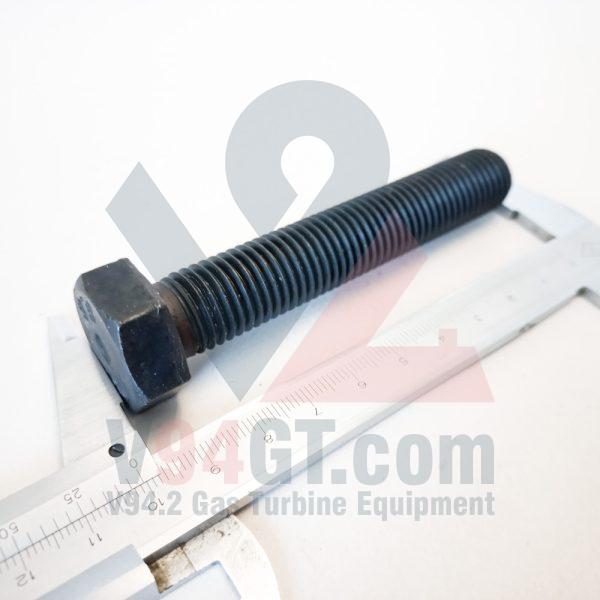

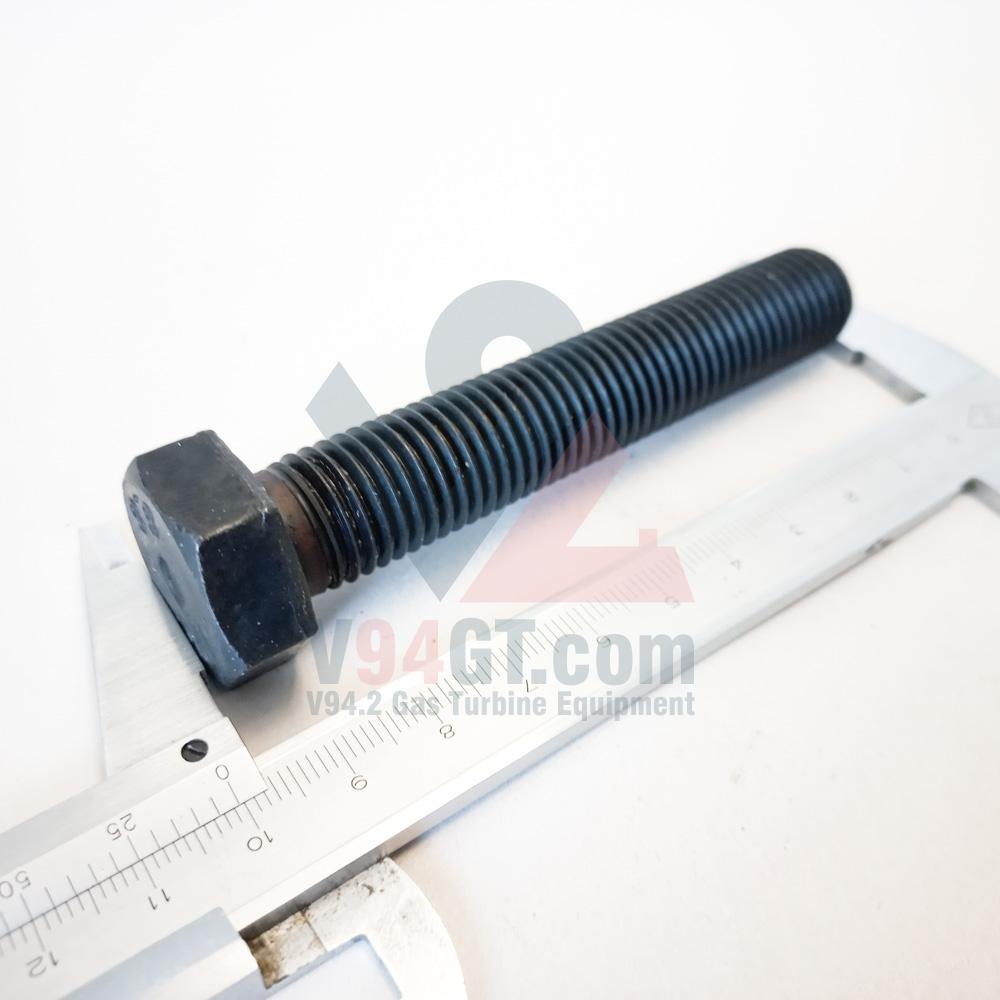

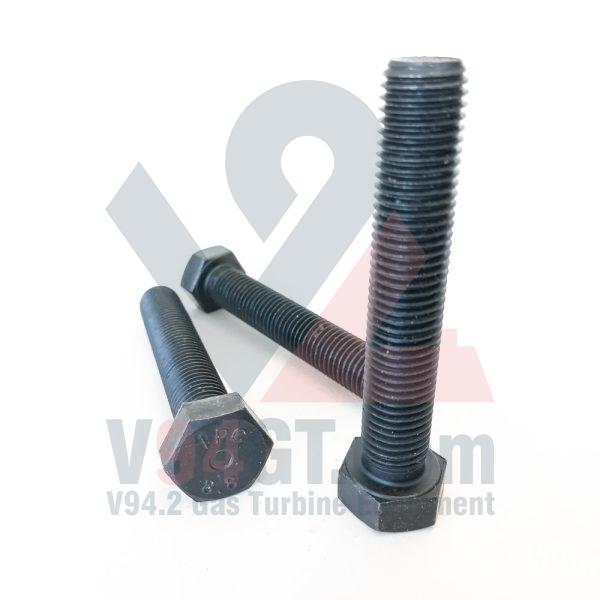

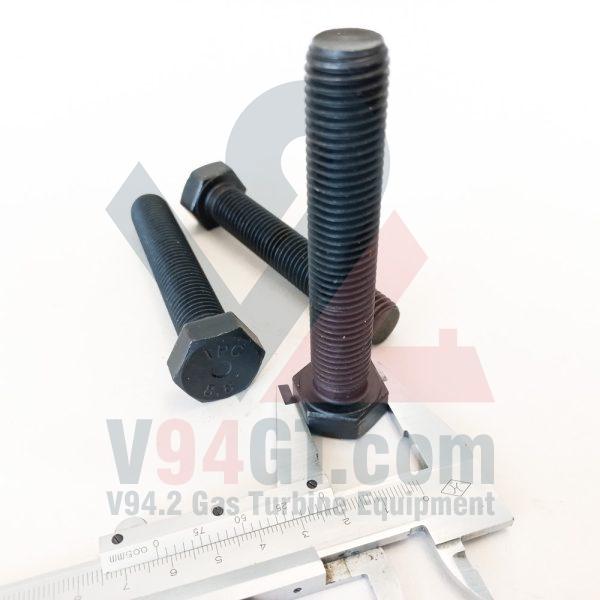

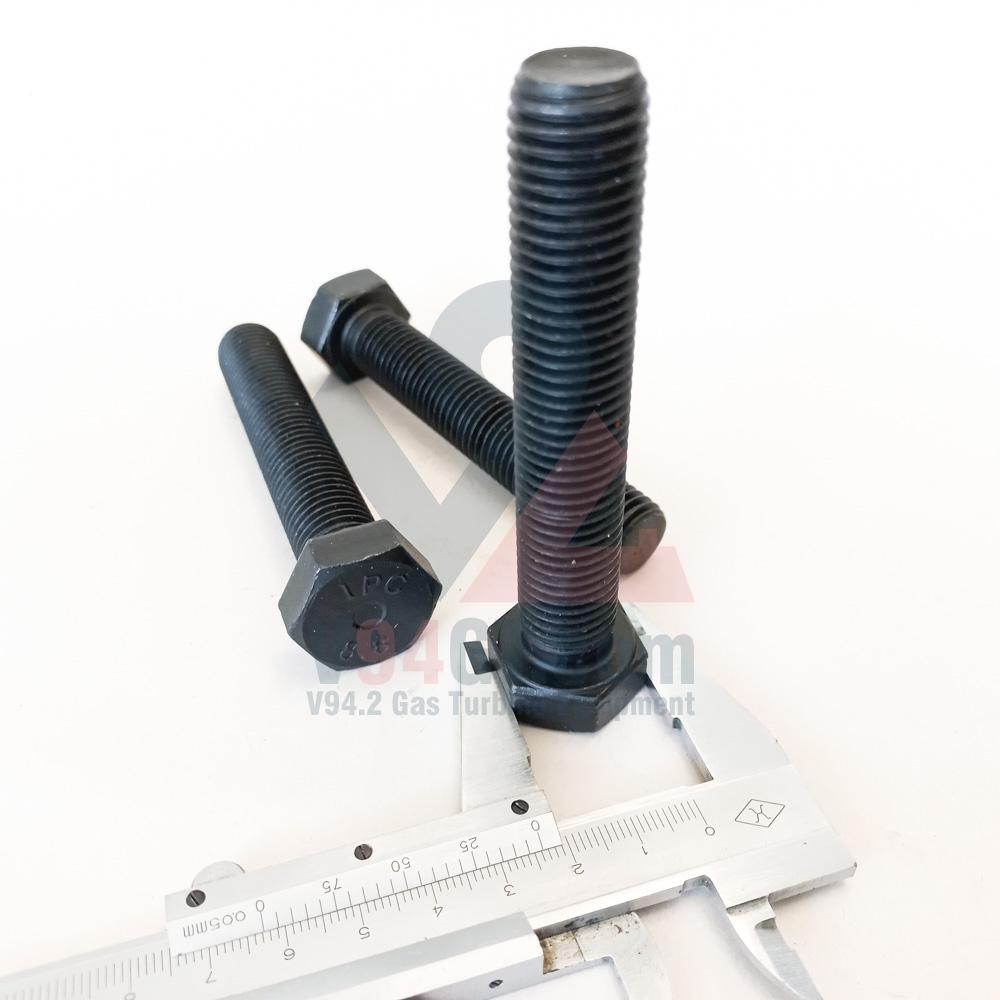

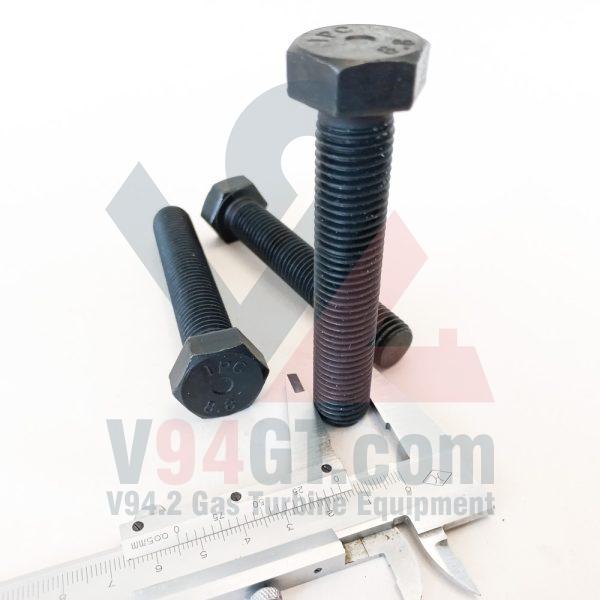

HEXAGONAL HEAD SCREW M16X90: A Crucial Component of V94.2 Gas Turbine
Distribution
- Introduction
- Specifications
- Importance of HEXAGONAL HEAD SCREW M16X90 in V94.2 Gas Turbine
- Material Grade and Heat Treatment
- Yield and Tensile Strength
- Hardness and Diameter
- Conclusion
Introduction
The V94.2 gas turbine is a crucial component of many industrial applications, including power generation and oil and gas processing. This turbine requires a range of high-quality components to function optimally, and one of the most critical of these is the HEXAGONAL HEAD SCREW M16X90.
Specifications
This equipment is a component of the Centre Casing system in the V94.2 gas turbine. Its KKS code is MBA19HA009G, and its position is 016. The screw is made from 1.1191 material standard and has a material grade of 8.8. It undergoes hard temper heat treatment and has a DIN of 933.
Importance of HEXAGONAL HEAD SCREW M16X90 in V94.2 Gas Turbine
The screw M16X90 plays a crucial role in the V94.2 gas turbine, helping to hold the Centre Casing in place and maintain the turbine’s structural integrity. Without this component, the turbine would be unable to operate safely and effectively.
Material Grade and Heat Treatment
this component is made from 1.1191 material, which is a high-strength steel alloy. It has a material grade of 8.8, indicating that it has a minimum yield strength of 640 MPa and a minimum tensile strength of 800 MPa. The screw undergoes hard temper heat treatment, which increases its strength and durability.
Yield and Tensile Strength
The screw has a yield strength of 927 N/mm2 and a tensile strength of 965 N/mm2. These values indicate that the screw can withstand high loads and stresses without experiencing plastic deformation or failure.
Hardness and Diameter
this component has a hardness of 31 HRC, which is relatively high and indicates that the screw is resistant to wear and deformation. The screw has a diameter of 16 mm, making it suitable for use in the V94.2 gas turbine’s Centre Casing system.
Conclusion
The HEXAGONAL HEAD SCREW M16X90 is a critical component of the V94.2 turbine, helping to maintain the turbine’s structural integrity and ensure safe and effective operation. Its high-strength steel alloy, hard temper heat treatment, and impressive yield and tensile strength make it a reliable and durable component in this demanding industrial application.
